How to Create Control Add-in in Business Central

Updated: Aug 4, 2020

This post explains you what is Control Add-in and you will learn how to create Control Add-in using existing resources on the internet. Sample code contains Carousel Control Control Add-in using Bootstrap resources. You can download source code from github. In the conclusion talked about why to use Control Add-in, what advantage Business Central User gains.


Introduction

Control Add-in is a special type of object in Business Central to create User Control. In other words Control Add-in (User Control) is a web component developed using JavaScriptHTML and CSS that can interact with Business Central. You need User Control when you do not have the required control available in standard Business Central. Also you need User Control when you want to simplify User Interface (UI) for your Business Central User.


Required Skills

You need to have the following skills to develop Control Add-ins:


• AL - Good • HTML - Basic • CSS - Basic • JavaScript - Basic


If you are smart enough, you just need to know how to copy paste :)

If you are new to HTML, CSS, and JavaScript, in my opinion w3shools.com is the best place to learn quickly.


Best Practices

You should always try to create reusable Control Add-ins. You should be able to use the same User Control in more than one page.

If you do not hard-code:

  • A 'Map Control' can be used, in Customer, Vendor, Bank, Location pages.

  • A 'Status Indicator Control' can be used in Sales, Purchase, and Service Orders, may also be in Bank Reconciliation page.

In the example given below, if you hard-code slides data in Control Add-in instead of sending as a parameter, you can not use this in other pages.


Let's create a Control Add-in

We don’t need to develop Control Add-in from scratch. There are tons of open source web components available on the web. We just need to understand the component and convert it to Control Add-in.


We are to using the following resources from bootstrap to create Control Add-in:


JavaScript

https://code.jquery.com/jquery-3.5.1.slim.min.js
https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js
https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/js/bootstrap.min.js

CSS

https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/css/bootstrap.min.css

HTML

<div id="carouselExampleCaptions" class="carousel slide" data-ride="carousel">
  <ol class="carousel-indicators">
    <li data-target="#carouselExampleCaptions" data-slide-to="0" class="active"></li>
    <li data-target="#carouselExampleCaptions" data-slide-to="1"></li>
    <li data-target="#carouselExampleCaptions" data-slide-to="2"></li>
  </ol>
  <div class="carousel-inner">
    <div class="carousel-item active">
      <img src="..." class="d-block w-100" alt="...">
      <div class="carousel-caption d-none d-md-block">
        <h5>First slide label</h5>
        <p>Nulla vitae elit libero, a pharetra augue mollis interdum.</p>
      </div>
    </div>
    <div class="carousel-item">
      <img src="..." class="d-block w-100" alt="...">
      <div class="carousel-caption d-none d-md-block">
        <h5>Second slide label</h5>
        <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit.</p>
      </div>
    </div>
    <div class="carousel-item">
      <img src="..." class="d-block w-100" alt="...">
      <div class="carousel-caption d-none d-md-block">
        <h5>Third slide label</h5>
        <p>Praesent commodo cursus magna, vel scelerisque nisl consectetur.</p>
      </div>
    </div>
  </div>
  <a class="carousel-control-prev" href="#carouselExampleCaptions" role="button" data-slide="prev">
    <span class="carousel-control-prev-icon" aria-hidden="true"></span>
    <span class="sr-only">Previous</span>
  </a>
  <a class="carousel-control-next" href="#carouselExampleCaptions" role="button" data-slide="next">
    <span class="carousel-control-next-icon" aria-hidden="true"></span>
    <span class="sr-only">Next</span>
  </a>
</div>

Now we are creating Carousel Control using the above resources.


1. Control Add-in Object [ CarouselControl.ControlAddin.al ]

This Carousel Control has OnStartup trigger, which will be triggered once the User Control is loaded.

SetCarouselData is a function that will send the slides data to Control Add-in.

controladdin "Carousel Control"
{
    HorizontalStretch = true;
    RequestedHeight = 200;

    // JS files required for Bootstrap
    Scripts = 'https://code.jquery.com/jquery-3.5.1.slim.min.js',
        'https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js',
        'https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/js/bootstrap.min.js';

    StartupScript = 'src/startup.js';

    // Bootstrap css
    StyleSheets = 'https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/css/bootstrap.min.css';

    procedure SetCarouselData(Data: JsonObject);
    event OnStartup();
}

2. Startup JavaScript file [ startup.js ]

This JavaScript file will be loaded once the User Control is ready. We are invoking OnStartup trigger so that the hosting page can receive the event and send the data back to the User Control.

Microsoft.Dynamics.NAV.InvokeExtensibilityMethod('OnStartup')

function carouselIndicators(slides) {
    var indicators = [];
    for (var i = 0; i < slides.length; i++) {
        var cssClass = i === 0 ? 'class="active"' : '';
        indicators.push(`<li data-target="#carouselExampleCaptions" data-slide-to="${i}" ${cssClass}></li>`);
    }

    return `<ol class="carousel-indicators">${indicators.join('')}</ol>`;
}

function carouselItems(slides) {
    var carouselItems = [];
    for (var i = 0; i < slides.length; i++) {
        var slide = slides[i];
        var cssClass = i === 0 ? 'active' : '';

        carouselItems.push(`
<div class="carousel-item ${cssClass}">
    <img src="${slide.image}" class="d-block w-100" alt="${slide.title}" style="height: 200px">
        <div class="carousel-caption d-none d-md-block">
        <h5>${slide.title}</h5>
        <p>${slide.description}</p>
    </div>
</div>`);
    }

    return `<div class="carousel-inner">${carouselItems.join('')}</div>`;
}

function carouselMarkup(data) {
    return `
<div id="carouselExampleCaptions" class="carousel slide" data-ride="carousel">
    ${carouselIndicators(data.slides)}
    ${carouselItems(data.slides)}
    <a class="carousel-control-prev" href="#carouselExampleCaptions" role="button" data-slide="prev">
        <span class="carousel-control-prev-icon" aria-hidden="true"></span>
        <span class="sr-only">Previous</span>
    </a>
    <a class="carousel-control-next" href="#carouselExampleCaptions" role="button" data-slide="next">
        <span class="carousel-control-next-icon" aria-hidden="true"></span>
        <span class="sr-only">Next</span>
    </a>
</div>`;
}

window.SetCarouselData = function (data) {
    try {
        var markup = carouselMarkup(data);
        document.getElementById('controlAddIn').innerHTML = markup;
        $('#carouselExampleCaptions').carousel();
        console.log(markup);
    } catch (err) {
        console.log(err);
    }
}

3. Page [ CustomerListExt.PageExt.al ]

We are extending the Customers page to add Carousel Control at the top of the customers list. When the OnStartup event is triggered, we are preparing the Json Object that contains the slides data and sending it to Carousel Control.

pageextension 50100 CustomerListExt extends "Customer List"
{
    layout
    {
        addbefore(Control1)
        {
            usercontrol(Carousel; "Carousel Control")
            {
                trigger OnStartup()
                var
                    JObject: JsonObject;
                    Slides: JsonArray;
                begin
                    Slides.Add(AddSlide('Keep your promises', 'check before you make a promise', '//unsplash.it/1024/200'));
                    Slides.Add(AddSlide('Never forget', 'always register your conversations to ensure you follow-up promptly', '//unsplash.it/1025/200'));
                    Slides.Add(AddSlide('Qualify', 'be picky about which opportunities to spend time on', '//unsplash.it/1024/201'));
                    JObject.Add('slides', Slides);
                    CurrPage.Carousel.SetCarouselData(JObject);
                end;
            }
        }
    }

    local procedure AddSlide(Title: Text; Description: Text; Image: Text): JsonObject
    var
        Slide: JsonObject;
    begin
        Slide.Add('title', Title);
        Slide.Add('description', Description);
        Slide.Add('image', Image);
        exit(Slide);
    end;
}

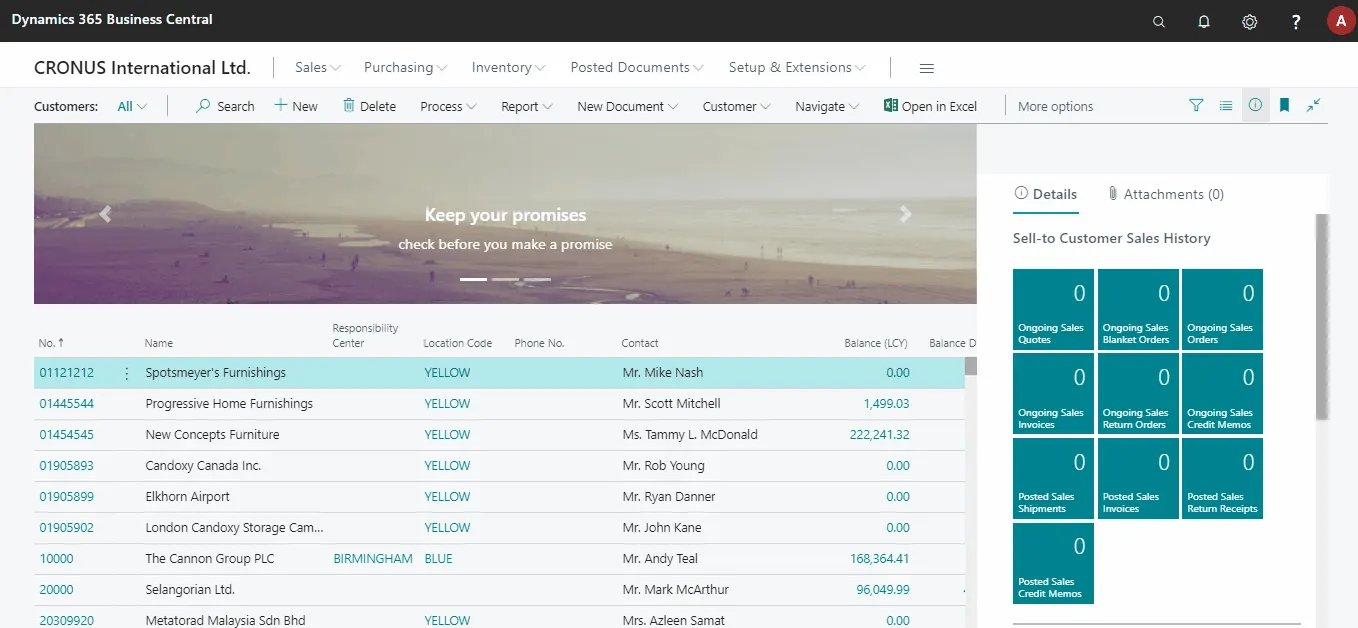

Carousel Control in Action



Conclusion


If we think about it, The Users don't actually need training to work on portals just because they are intuitive. But in the case of Business Applications, we definitely need to provide training to the Business Users, where they already know their business more than us. Isn't it funny! It is simply because they are not provided proper and intuitive User Interfaces. I think we should try to provide proper UI to the Users so that it is convenient for their use. Proper UI means that we should not restrict our self only to the available controls. Where ever required, we should definitely try to create Control Add-ins / User Controls for better user experience.


Use Control Add-ins - Help customers!!


You can download the source code from Github
